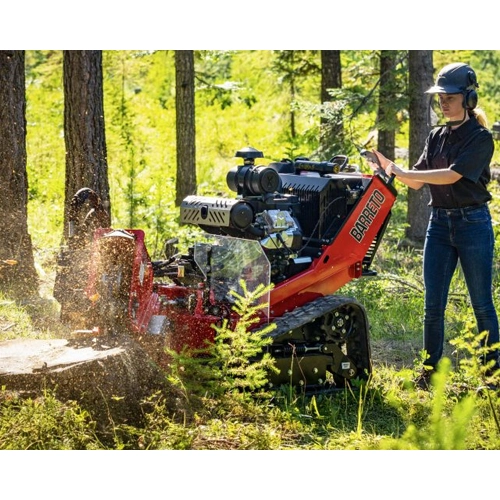

37SGB Stump Grinder

ENGINE: Briggs & Stratton Vanguard V-Twin 37hp DETAILS: Height: 49.5? Length (head to side): 79? Length (head straight): 98? Width: 35.5? Weight: 1,950 lb. Hydraulic Reservoir: 14 gallons Hydraulic Flow to Head: 13.3gpm Track Width: 7.1? Total Ground Contact: 470 sq. in. Ground Drive Forward: 290 ft/min Ground Drive Reverse: 180 ft/min WHEEL SPECIFICATIONS Cutting Wheel: 19.2? diameter to tooth Cutting Teeth: 0.97 thick, 16 green teeth Cutting Depth: 12? Cutting Height: 32? Head Swing: 134°, 99.7? arc

37SGB Stump Grinder Features:

•  Easy controls operate the track drive and cutter wheel
•  Time-tested track design absorbs impact and provides stability
•  Center-mounted cutter wheel provides 134º head swing
•  Piston pumps coupled to the engine drive the cutter wheel, tilt, and swing
•  Counterbalance valves on each track drive prevent motors from slipping
